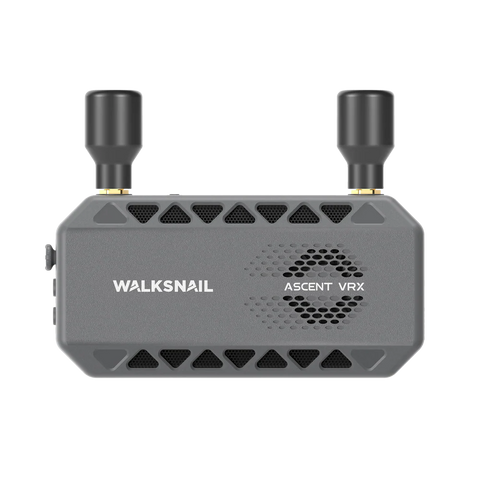

WalkSnail Ascent FPV VRX Module
Dual Antennas, Rock-Solid Connection
Signal drops are a thing of the past. Equipped with Dual Circular Polarized Antennas (≥97% efficiency), the Ascent VRX delivers a stable, unwavering link up to 6km away. Fly further, fly bolder, fly worry-free.
Multi-Platform Application
The ultimate FPV powerhouse for Drones, Fixed-wings, and RC cars. Whether you're racing for the podium, filming a cinematic masterpiece, or teaching the next generation, the Ascent VRX dominates every scene.
SPECS
Name
Ascent VRX
Communication Frequency
5.725-5.829 GHz
Transmitter Power(EIRP)
FCC/SRRC:<30dBm, CE:<14dBm

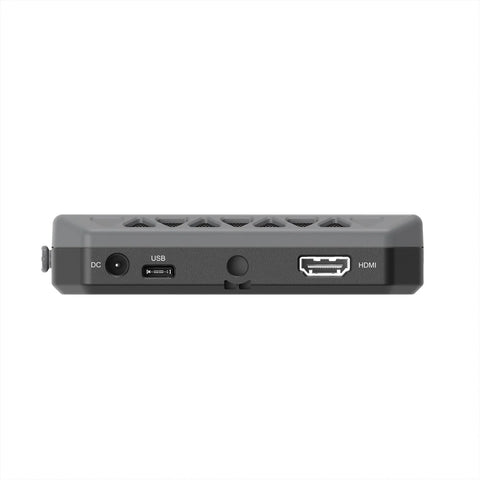

l/O Interface
HDMl, Micro SD Card, DC5.5*2.1mm SH1.0*6PIN, Type-C
HDMI Out
1080p50fps, 1080p60fps, 720p50fps, 720p60fps, 720p100fps, 720p120fps
Power Input
7.4~25.2V
SD Card
Support Micro SD 256G
System
Ascent HD system
Bandwidth
5m/10m/20m/Auto
Recording Format
MP4 (H.264)
Weight
118g
Dimension
114.5*64*24mm
Name
Red bird
Polarization
LHCP
Bandwidth
5.725-5.829 GHz
Average Gain
2dBi
Radiation Efficiency
≥97%
VSWR
≤1.3
Cross-Polar Rejection
-15to-30dB
Connector
RP - SMAx2
Dimension
25*15.5mm
