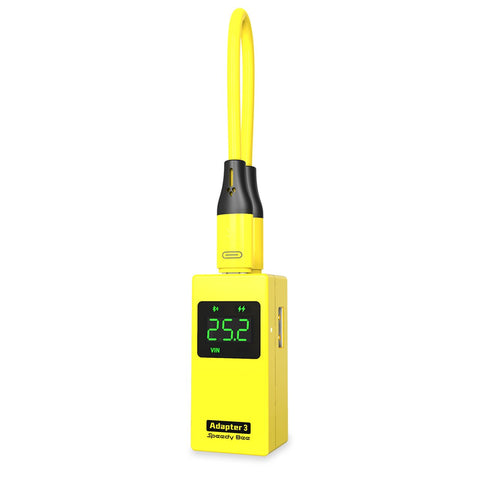

SPEEDYBEE Adapter 3 WiFi Bluetooth Type C Micro USB Cable

Quantity

Featured Products

RadioMaster Bandit BR3 ExpressLRS 915MHz ELRS TCXO Receiver

RadioMaster TX16S Mark II Max Radio Controller Transmitter

TBS Crossfire Micro TX V2 Starter Set

Infinity 1400mAh 6S 150C 22.2V LiPo Battery XT60 [DG]

RadioMaster Bandit Nano ExpressLRS 915MHz RF ELRS 1W Module TX

DOGCOM 5200mAh 6S 120C 22.2V LiPo Battery QS8 [DG]

Item	SpeedyBee Adapter 3	SpeedyBee Adapter 2
Support 1-6S LiPo input	✔	✔
XT60 and PH2.0 connectors	✔	✔
BF/INAV/EMU configuration	✔	✔
Flight control firmware upgrade	✔	✔
Built-in WiFi	✔	✔
Built-in Bluetooth	✔	✘
Blackbox downloader and analyzer	✔	✘
8-bit BLHeli_S ESC firmware updater	✔	✘
Built-in MicroUSB and Type C connector	✔	✘
Fast charging output up to 30W	✔	✘
Built-In LiPo Voltage Checker	✔	✘

Product Name	SpeedyBee Adapter 3
Power Input Voltage Range	1-6S(3.8V+ for 1S)
Power Input Connector	XT60-Male, PH2.0 male
Required Mobile Device System Version	Android 7.0+ \| iOS 12.0+
Supported SpeedyBee App Version	V1.6.1 + for iOS \| V1.5.6+ for Android
Maximum Output Current for flight controllers	700mA @5V
Fast Charging Output interface	USB A Port
Minimum Input Voltage for Charging output	7.4V(2S LiPo)
Supported Fast Charging Protocol	• QC3.0/QC2.0 • AFC • FCP • SCP/High SCP • PE2.0/PE1.1 • SFCP
Max Fast Charging Current	3.5A
Max Fast Charging Power	30W
Case Material	ABS + PC
Liquid Silicone Cable Length	12.4cm
Dimension(Main Body)	24.821.853.6mm
Net Weight	35g
