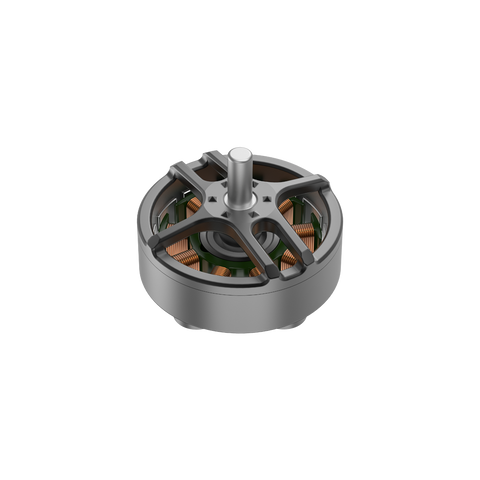

iFlight XING 1002 TinyWhoop FPV Motor 22000KV
Specifications
- Model: XING 1002 Black Motor
- KV: 19000KV/22000KV
- Weight(included wire): 2.4g
- Dimension: φ12.5*8mm
- Interphase Resistance: 0.086Ω/0.070Ω
- Input Volts: 4V
- Peak Current: 5.3A/ 7.8A
- Max Watt: 19W/ 28W
- Mounting Holes: 3*3 φ1.4mm
- Rotor Specifications: Segmented bell
- Shaft Diameter: 1.5mm
- Shaft Protruding Length: 3.5mm
- Lead: 50mm/28AWG/SH1.25
- Magnet: N52H Curved
- Configuration: 9N12P
- Bearing Type: NSK
- Bearing Specification: φ4*φ2*1.5
- Winding: Single Strand copper winding
Packing List
- 1x XING 1002 FPV Motor 22000KV
- 4x M1.4*4mm screws
