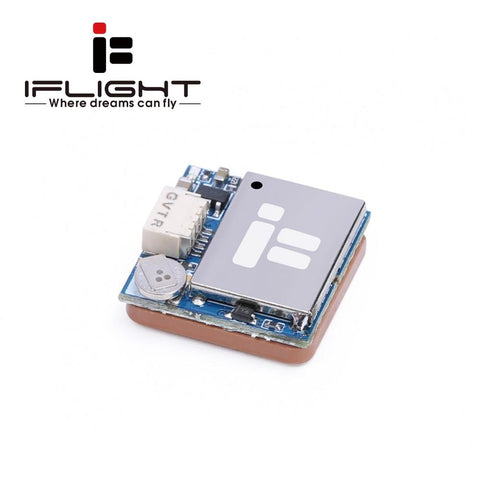

iFlight FPV M8 GPS Module

  • Rs. 1,600.00



iFlight FPV GPS Module

Specifications:

*Size:18*18.5*6mm
*Weight: 4.59g
*Positional accuracy: 50 centimeter precision when working with concurrent GNSS
*Velocity precision: 0.1m/s
*Max height: 50000m
*Max speed: 515m/s
*Max acceleration: 4G
*Max update rate: up to 10Hz

Sensitivity

*Model:M8030-KT
*Frequency:GPS L1,GLONASS L1,BEIDOU B1,GALILEO E1,SBAS L1,QZSS L1
*Working mode:GPS,GLONASS,BEIDOU,GALILEO,SBAS,QZSS
*Tracking & Nav.: -167dBm, Reacquisition: -163dBm,
*Cold start: -151dBm, Hot start: -159dBm
*Time to first fix: Cold start: 26s, Hot start: 1s
*Precision:1m

Connect ports:

*Power supply: voltage 3V-5VDC+-5%, current 40mA

Ports:
*A. GPS UART interface
*Baud rate:4800bps-921600bps(9600bps )

The output:TTL

Top configuration:

*GPS decoder chip:  UBX-M8030K

Package included:

*M8030-KT GPS*1 pc
*SH-1.0-4Pin silicon wire *1 pc

Package included:

1pc x GPS Module
