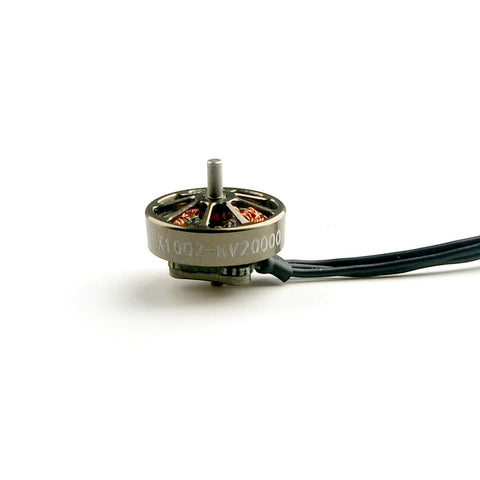

Brand name: Happymodel
Item name: EX1002 brushless motor
KV: 20000KV
Shaft Diameter: 1.5mm
Configuration: 9N12P
Stator Diameter: 10mm
Stator Length: 2mm
Motor Dimension(Dia.*Len): Φ13.5mm*12.5mm
Terminals: JST1.25mm
No. of Cells(Lipo): 20000KV compatible with only 1S lipo
Wire length(exclude connector):40mm
Weight: 2.45g
Compatible for Mobula7 1S version , Mobula7 HD 1S version, Moblite7 HDZERO, and Moblite7 avatar.

Happymodel EX1002 KV20000 Brushless motor Bench data
No-load voltage	No-load current	No-load Speed	KV	Voltage (v)	Current (A)	Thrust (g)	Efficiency (g/w)	Power (w)	Propeller
2	0.5	41820	20910.0	3.7	1.01	12.9	3.452	3.737	Gemfan 2015-2 2-blade propeller
				3.7	2.01	23.3	3.133	7.437
				3.7	3	32.1	2.892	11.1
				3.7	4	40.8	2.757	14.8
				3.7	5	48.9	2.643	18.5
				3.7	5.99	55.4	2.500	22.163
