FrSky R-XSR New Smaller Fully Functional XSR
Important:
- Our current frsky receivers default version in 2.XX, requires to use the same version of frsky transmitter.
- If you have none frsky transmitter, please downgrade the version lower than 2.X.X, www.frsky-rc.com for more details.
FrSky RXSR Redundancy ACCST Receiver
Description:

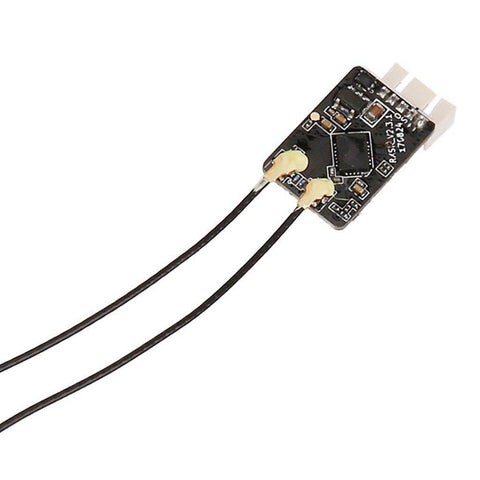

FrSky R - XSR is the evolution of FrSky full range XSR receiver. As a standalone receiver with all the functions of XSR, it only has 1/3 size and 1/3 weight of the XSR receiver. Moreover, there redundancy function is integrated into this tiny receiver to ensure the security, and the IPEX connector makes it more convenient for you to replace antennas.
Main Features:
- Ultra mini size and light weight, only 1/3 of the XSR receiver
- Supports telemetry, with Smart Port enabled
- Switchable SBUS / CPPM signal output
- Supports redundancy function
- With IPEX connector, the antennas can be replaced easily
Specifications:
- Number of channels: 16CH ( SBUS: CH 1 - 16, CPPM: CH 1 - 8 )
- Operating voltage range: 4 - 10V
- Operating current: 100mA at 5V
- Firmware upgradable: yes
- Compatibility: FrSky X Series modules and transmitters in D16 mode
Package Included:
- 1 x FrSky R-XSR Receiver
