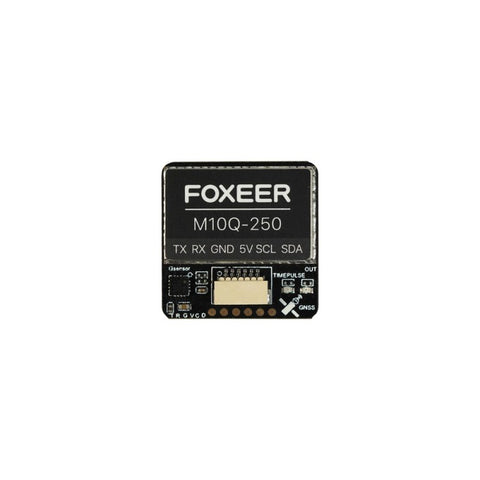

Foxeer M10Q 250 GPS 5883 Compass Module

Quantity

Availability: Loading...

Featured Products

iFlight XING2 2306 FPV Motor Unibell 4-6S 1755KV

GEPRC Cinebot25 S HD O3 4S CineWhoop Digital FPV Drone

eSUN PLA-ST Super Tough 3D Printer Filament 1.75mm 1KG (Black)

HOTA S6 Dual Channel LiPo Charger AU Plug

Auline V3 Backpack FPV Hobby RC Outdoor Multifunction Backpack

iFlight iH3 O3 DJI HD System 4S FPV FreeStyle Racing Drone PNP

Chip	M10(10th Generation Chip)
Frequency	GPS L1，GLONASS L1，BDS B1，GALILEO， ESBAS L1，QZSS L1
Input Voltage	5V
Antenna	Ceramic Antenna
Channel	72
Battery	Bilid-in
Compass	QMC5883
Compass Orientation	Plug facing direction of flight and obviously antenna up, BF: CW 90° Flip
Baud Rate	115200bps
Protocol	Dual NMEA/UBLOX
Output Frequency	1Hz-10Hz,10Hz default
Speed Accuracy	0.05m/s
Horizontal Positioning Accuracy	2D ACC1.5m(outdoor)
Receiver Sensitivity	Trace -166dBm; Capture -160dBm
Dynamic Characteristics	Height 50000m; Speed 500m/s; Acceleration 4G
Operating Temperature	-40C-+85C
Storage temperature	-40C-+105C
Weight	12g
Size	25258mm
