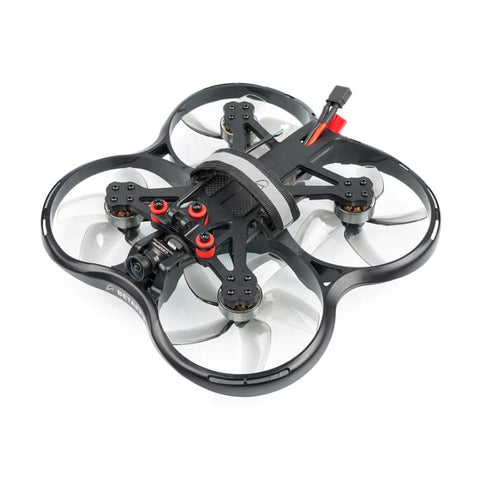

BetaFPV Pavo30 HD Whoop Quadcopter Sub 250g Nebula Nano Digital PNP
Pavo30 whoop quadcopter, a new concept of 3-inch pusher drone developed by BETAFPV, is going further in performance, durability and power with brand new power system. It's powerful enough to carry SMO 4K camera or a customized Naked Camera for all FPV freestyle tricks, and also can carry a GoPro for some simple action flying. Hence this 3-inch whoop drone can meet more high-quality shooting needs. Pilots can enjoy a incredibly stable and clear HD footage video while in the FPV flight!
Bullet Point
- Pavo30 is the first 3-inch pusher whoop drone developed by BETAFPV. Compared with Beta95X V3 pusher whoop drone, it's going further in performance and durability with brand new power system.
- The analog vtx version comes with Toothpick F722 AIO 35A FC, 1505-3400KV motor, and HQ75 5-blade props. Pavo30 HD Digital VTX version comes with Toothpick F722 AIO 35A FC, 1506-3000KV motor & Gemfan D76 5-Blades props, this highly efficient power system lays the foundation for powerful and stable flight.
- Pavo30 whoop drone can do both freestyle and cinematic shot both. Not only can support carrying SMO 4K camera or a customized Naked Camera for more maneuverable to achieve all FPV freestyle tricks, it can also carry a GoPro for some simple action flying.
- Equipped with newly developed Pavo30 frame, which is made of PA12 material, it has higher abrasion resistance, toughness, and shows excellent impact resistance in drop & impact tests.
- Centering the drone's gravity by reversed-motor design and more compact structure to make the drone more maneuverable to achieve all FPV freestyle.
- The shock mitigation system with cushion make cameras more stable on the flight, which ensures pilots can capture all the beautiful moments of flight with the stabilized and clear video.
- Pavo30 whoop drone(HD Digital VTX) comes with Nebula micro HD camera and Vista VTX system. The drone can support the DJI FPV Goggles. Pilots can enjoy superb FPV picture and long transmission distance.
Specification
| Pavo30 Whoop Drone(Analog VTX) | Pavo30 Whoop Drone(HD Digital VTX) | |
|
145g (without battery) | 173g (without battery) |
|
118mm | 118mm |
|
F722 AIO 35A FC | F722 AIO 35A FC |
|
Pavo30 Frame Kit | Pavo30 Frame Kit |
|
1505-3400KV motor | 1506- 3000KV motor |
|
HQ75 5-blade props with 1.5mm shaft hole | Gemfan D76 5-Blade props with 5mm shaft hole |
|
Frsky FCC/Frsky LBT/TBS/FUTABA/PNP | Frsky FCC/Frsky LBT/TBS/PNP |
|
ANT Nano camera | Nebula Nano camera |
|
0°- 60° | 0°- 60° |
|
M02 25-250mW VTX | VISTA HD Digital VTX |
|
SMO 4K camera Mount | SMO 4K camera Mount |
|
5°- 45° | 5°- 45° |
|
750mAh 4S battery /850mAh4S battery (Not included) | 750mAh 4S battery /850mAh 4S battery (Not included) |
|
XT30 | XT30 |
|
About 6-8 minutes | About 6-8 minutes |
Pavo30 Frame Kit
Equipped with newly developed Pavo30 frame made of PA12 material, it has higher abrasion resistance, toughness, and shows excellent impact resistance in drop & impact tests. So the whole drone will be more durable flight and no fear of crash. The reversed pusher style puts all the cameras and batteries on the top of the drone, coupled with a more compact frame structure, the center of gravity of Pavo30 is right in the middle, which makes the flight more flexible.
Analog Camera & VTX
Pavo30 whoop drone analog vtx version comes with Caddx ant camera, which is an analog FPV micro camera with 1200TVL Global WDR, only weight 2g. In addition, M02 25-350mW VTX is a high-quality 5.8GHz VTX including 25mW, 100mW, 200mW and 350mW. With 350mW output power, pilots can fly drones up to 600 meters away to explore more possibilities and fun.
Nebula Nano HD System
Pavo30 whoop Drone HD Digital VTX version comes with Caddx Digital HD Camera Nebula Nano, which can perfectly support with DJI goggles. With DJI goggles, it can provide 720p/60fps digital high-definition picture and a transmission range up to 4km. Users can choose 25mW/200mW/500mW/700mW from DJI goggle settings. It is smaller and designed for whoop drones.
FC & ESC
Equipped with the updated F722 2-6S 35A AIO FC(BLHeli_S), Pavo30 whoop drone totally supports a 4S battery for the stable and flexible flight experience. Come with a BETAFPVF722 processor FC, BetaFlight OSD, and 35A BLHeli_S ESC, this AIO flight controller offers more powerful flight performance that can push your FPV racer to the max. We highly recommend 750mah 4S battery for the drone, Pavo30 can get 6-8min flight time with it.
Motor & Props
Pavo30 pusher whoop drone analog vtx version equips with 1505-3400KV motor & HQ75 5-Blades. HD Digital VTX version comes with 1506-3000KV motor & Gemfan D76 5-Blades props, these 2 configurations achieve a perfect dynamic balance, which gives the drone more flexible and longer flying time. Pilots can enjoy powerful and stable flights with less noise.
Package (HD Digital VTX)
- 1 * Pavo30 Whoop Quadcopter (HD Digital VTX)
- 1 * Gemfan D76 5-Blade props(2CW+2CCW)
- 1 * 20mm FPV Camera Mount
- 1 * USB Adapter Board for FC
- 1 * Adapter Cable for Customized Naked Camera
* Batteries and SMO 4K Camera are not included in the package.
