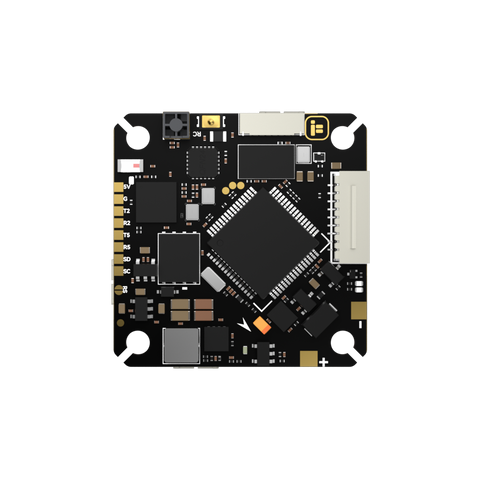

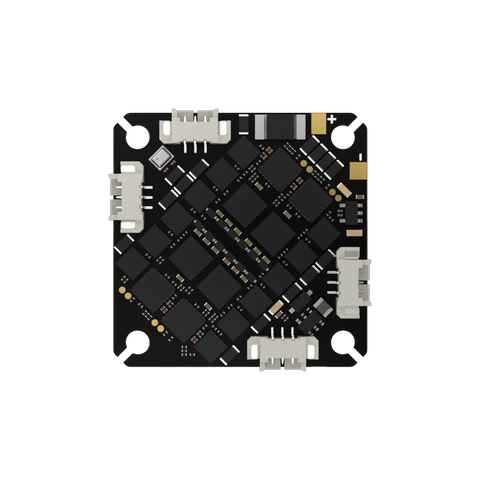

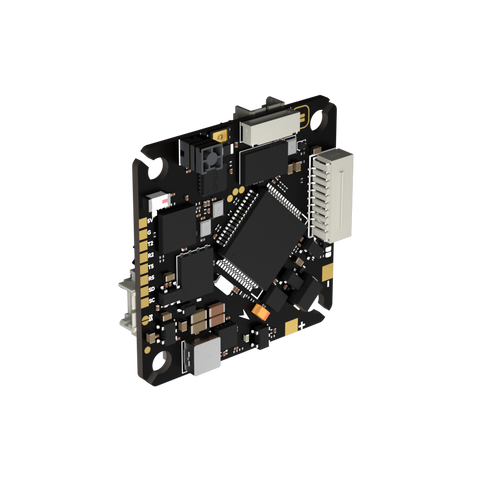

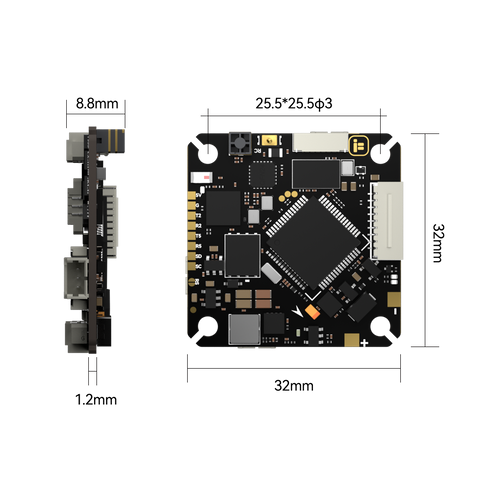

iFlight Borg 2 RX AIO Flight Controller ELRS 25.5x25.5mm
The Borg 2 RX AIO is a highly integrated flight control solution designed specifically for Defender 20 Lite. It combines flight control, electronic speed control, and receiver functions into one unit, offering easy installation while significantly reducing the overall weight and assembly complexity of the drone.
Features
Full interface design (besides reserved pads). Motor: SH1.25 3P ; Video Transmitter: SH1.0 9P interface; USB: SUR 0.8 7P interface.
On-board ELRS 2.4G receiver with built-in antenna, supports switching to external receivers.
On-board buzzer eliminates the need for an external one, saving space and streamlining the installation process.
FC Specifications
- Input voltage: 2-4S; Support LIHV battery
- MCU: STM32F722
- Gyro: ICM42688
- Barometer: SPA06-003
- OSD Chip: AT7456E
- Flash: 16MB (Blackbox flash)
- UARTS: 4
- Motor outputs: 4
- I2C serial: Supported
- VTX protocol: Support DJI MSP/Smartaudio/IRCTramp/HDZero
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFLIGHT_BLITZ_F722_X1（Betaflight）
- Mount pattern: 25.5*25.5mm φ3
- Dimensions: 32*32 mm±1
- Weight: 7g±1
- BEC: 5V 2.5A
ESC Specifications
- Input Voltage: 2-4S; Support LIHV battery
- Continuous Current: 12A
- MCU: STM32G071
- Driver: FD6288
- Firmware: BL32 (32bit ESC)
- Target: IFLIGHT BLITZ G3 -Rev. 32.9
- Current rate: 200（1/10mV/A）
- BEC: N/A
- Telemetry: Supported
- Bidirectional DSHOT: Supported
- Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.
Packing List
- 1 x Borg 20 RX AIO
- 1 x Cable set
- 4 x silicon grommets
