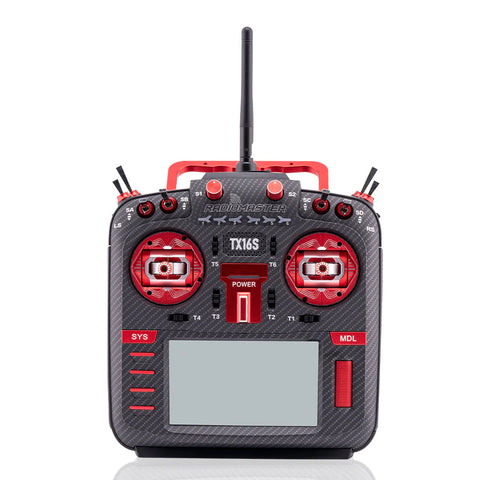

RadioMaster TX16S Mark II Max Radio Controller Transmitter

Protocol:

ELRS 2.4G

4IN1

Color:

Carbon Fiber Black

Carbon Fiber Red

Quantity

Featured Products

RadioMaster Bandit Nano ExpressLRS 915MHz RF ELRS 1W Module TX

DOGCOM 5200mAh 6S 120C 22.2V LiPo Battery QS8 [DG]

ISDT K2 Air Dual Channel Smart Charger 2-6S AC DC 200w 500w 20A

SUNLU ASA 3D Printer Filament 1.75mm 1KG

TBS Crossfire Micro TX V2 Starter Set

TBS Crossfire Diversity Nano RX

Improved internal circuity and optimized power supply.
New charge circuitry with integrated reverse-polarity protection.
Optimized charge IC now allows up to 2.2A internal USB-C charge current.
Rear mounted audio jack provided headphone output.
V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
Optional high/low rear grips included for improved ergonomics.
Improved S1/S2 knobs with clear centre-detents.
Redesigned battery cover for improved battery access.
Retooled body shell with improved fit and finish.
Available ELRS and 4in1 versions.

Size: 287x129x184mm
Weight: 750g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter module: Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401)； Option 2: Internal ELRS (SX1280)
Transmitting power: Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent); Internal ELRS : Max 250mw (transmitting power is adjustable)
Antenna gain: 2db (transmit power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Remote control distance:> 2km @ 22dbm
Radio firmware: EdgeTX
Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
Channels: Up to 16 channels (depending on the receiver)
Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
Gimbal: Option 1: V4.0 Hall sensor with Aluminium facia; Option 2: AG01 CNC Hall sensor
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / SD card offline upgrade
